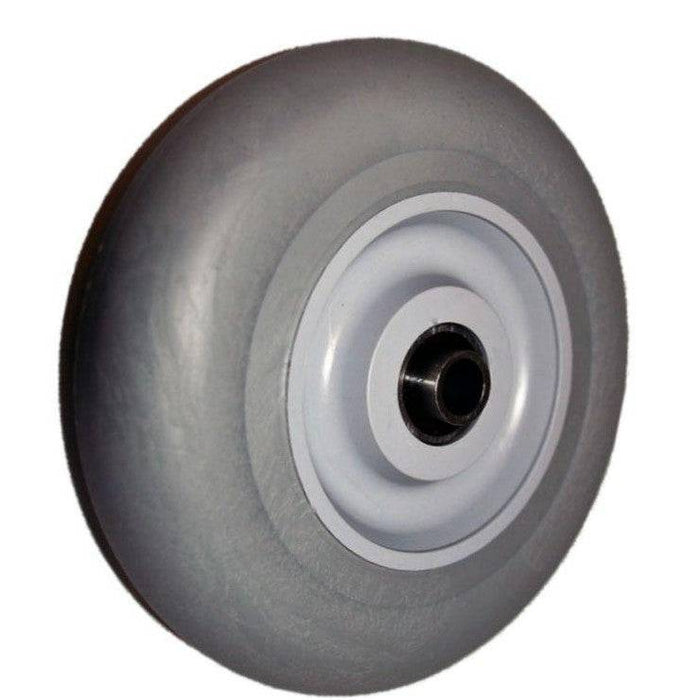

4" x 1-1/4" Element Wheel - 240 lbs. Capacity
4" x 1-1/4" Element Wheel - 240 lbs. Capacity
Product Overview
The Element wheel is quiet rolling providing a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a rounded tread, this wheel works well on both carpet and hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds. When used with a delrin bearing, this wheel is water-resistant and can be used in wash-down applications.
Tread: Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
Key Features
- Load Capacity: 240 Lbs.
- Wheel Diameter: 4"
- Tread Width: 1-1/4"
- Tread: Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
- Bearing: - Dual Row Annular Ball Bearing - Delrin Flanged Bearing
- Temperature Range: -45° F to 180° F
Ideal For
Choose this product if you need:
- A replacement wheel matching the listed 4" diameter and 1-1/4" tread width
- Loads within the listed 240 Lbs rating
- Applications matching the listed 4" x 1-1/4" wheel dimensions
- Applications needing the listed Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 240 Lbs, the equipment requires a wheel other than 4" diameter by 1-1/4" tread width, the axle or bearing requirement does not match - Dual Row Annular Ball Bearing - Delrin Flanged Bearing, or the operating temperature is outside -45° F to 180° F.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, temperature range, and SKU option match the wheel required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 240 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 1-1/4" |
| Tread Type | Rounded High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core |
| Core Type | Polyolefin Core |
| Axle / Bore Diameter | - 3/8" (Annular BB) - 1/2" (Delrin Bearing) |
| Hub Length | 1-9/16" |
| Wheel Color | Gray Tread on Gray Core |
| Durometer | Shore A 65 (+/-5) |
| Temperature Range | -45° F to 180° F |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| EL40GI5A | Bearing Type: 1/2" Delrin Bearing |
| EL40GI43 | Bearing Type: 3/8" Ball Bearing |
Frequently Asked Questions
What is this product used for?
Use it when you need a replacement wheel matching the listed 4" diameter and 1-1/4" tread width.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -45° F to 180° F.
